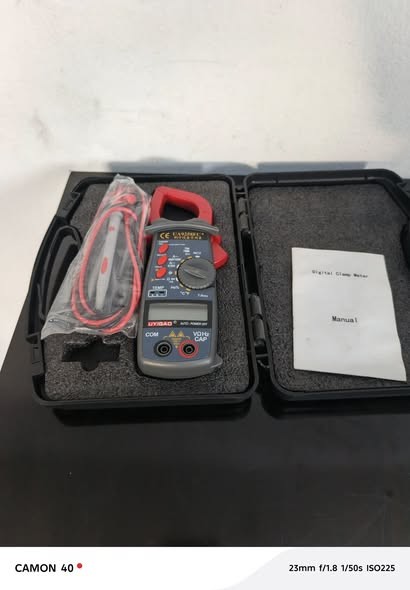

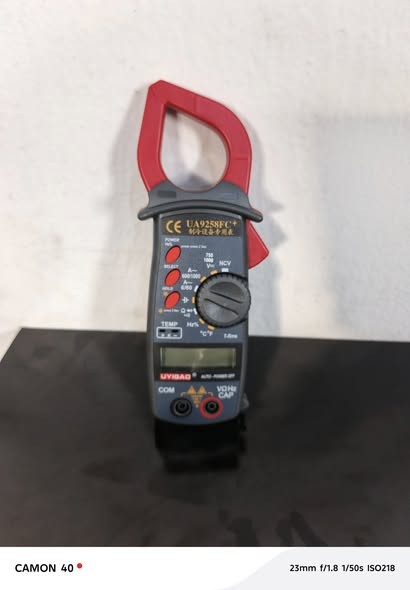

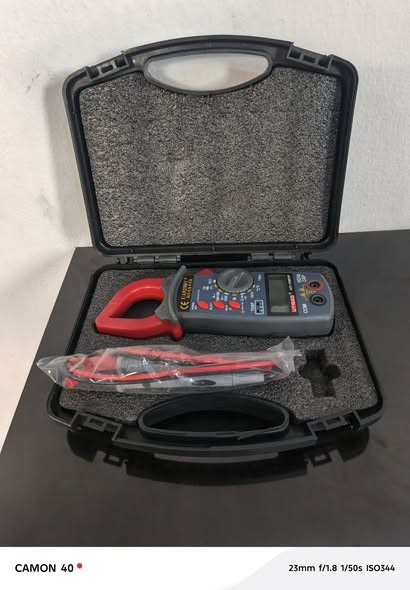

Digital Clamp Meter: UYIGAO UA9258FC

The UYIGAO UA9258FC+ Digital Clamp Meter is a professional True RMS multimeter engineered for high-current and high-voltage measurement in demanding electrical and industrial environments. Featuring a 1000A AC current clamp and 1000V voltage capability, it enables safe, non-intrusive testing without breaking live circuits. The large 5999-count display, auto-ranging function, and backlit screen ensure clear visibility in all working conditions. Built for field reliability, it integrates advanced protection systems, non-contact voltage detection (NCV), and multiple measurement functions, making it a versatile diagnostic tool for technicians and engineers.

Key Features

• True RMS measurement
• 1000A AC current clamp
• 1000V DC/AC voltage range
• NCV detection
• Auto range & data hold
• Backlit display
• Auto power-off & low battery indicator

Technical Specifications

DC Voltage: 6V–1000V ±(0.5%+5)
AC Voltage: 6V–750V ±(0.8%+5)
AC Current: 6A–1000A ±(2.5%+10)
Resistance: Up to 6MΩ
Capacitance: Up to 9.999mF
Frequency: 0–10MHz
Temperature: 0°C–1000°C
Jaw Opening: 36 mm
Display: 5999 counts
Power: 9V battery

Applications

Ideal for electrical maintenance, HVAC system diagnostics, industrial equipment servicing, power distribution testing, and on-site troubleshooting.

Availability

Lystus is the authorized dealer, distributor, and supplier.
